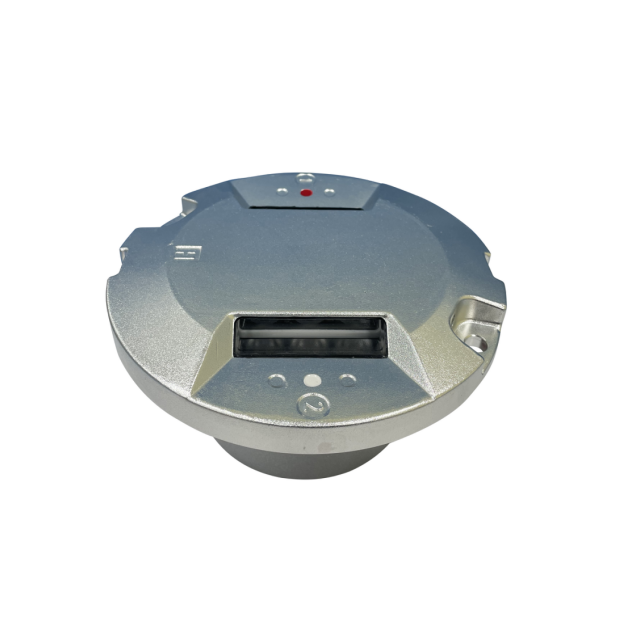

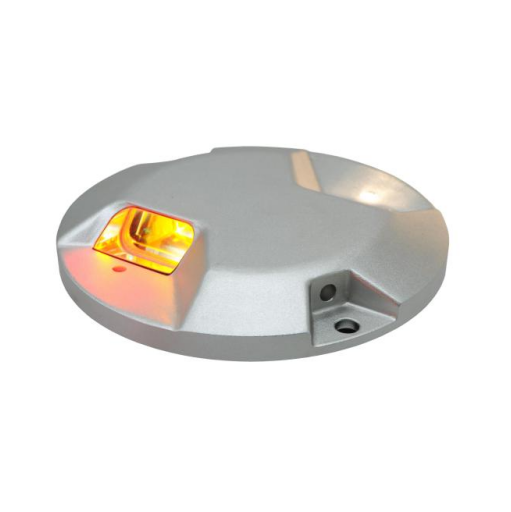

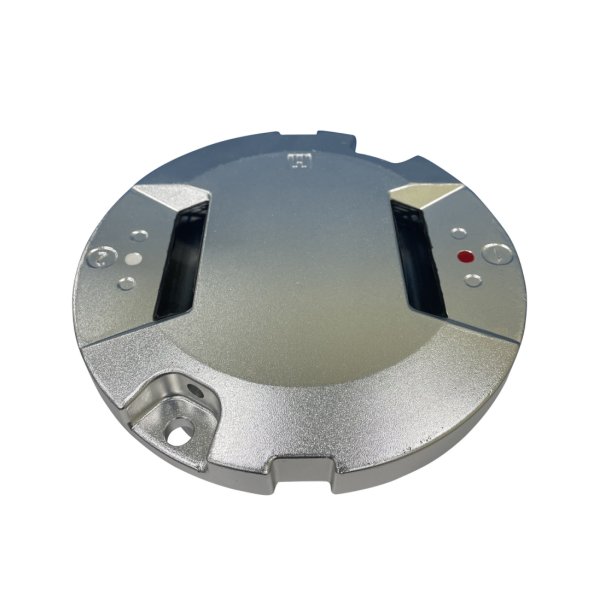

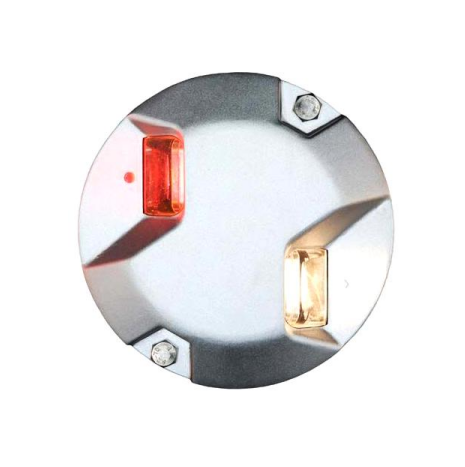

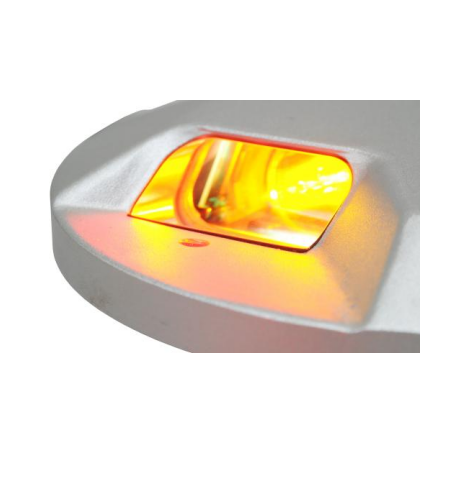

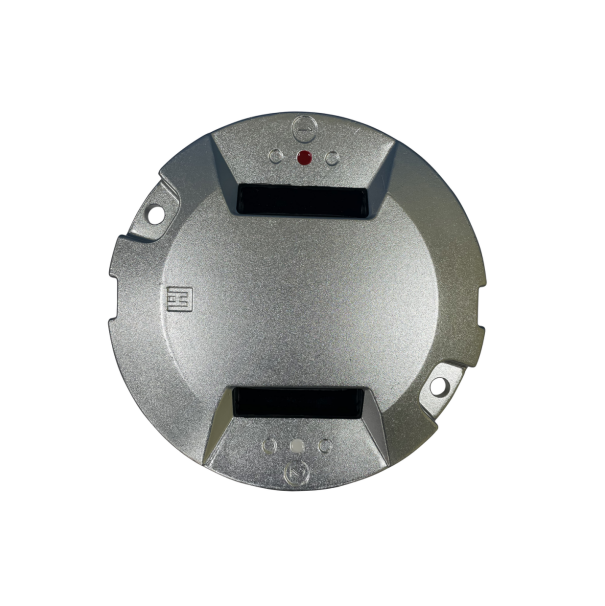

OS-RCL-02-XX(L) LED Inset Runway Centerline Light (8“6mm)

OS-RCL-02-XX(L) LED Inset Runway Centerline Light (8“6mm) - Image 3

OS-RCL-02-XX(L) LED Inset Runway Centerline Light (8“6mm) - Image 4

OS-RCL-02-XX(L) LED Inset Runway Centerline Light (8“6mm) - Image 5

OS-RCL-02-XX(L) LED Inset Runway Centerline Light (8“6mm) - Image 6

Short Description:

Altiglo OS-RCL-02-XX(L) LED Inset Runway Centreline Light is a reliable, durable, and

high-performance solution designed to meet the demanding requirements of airfield

operations and provide clear and visible guidance for pilots during takeoff, landing, and taxiing.With its exceptional visibility, energy efficiency, and ease of installation, this light is an essential addition to any airfield looking to improve safety and optimize runway operations.

Power supply: 2.8A~6.6A

Power consumption:26W(White & White); 17W(White & Red)

LED Life Time:100,000 Hours

Protrusion Height:8.6mm

Minimum Average Intensity:750cd(red); 5000cd(white)

Color: White & Red ; White & White

IP grade: IP68

Item: OS-RCL-02-XX(L)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-RCL-02-XX(L)
Category: Inset Type, Runway Lighting Series

Item	OS-RCL-02-XX(L)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~6.6A
Power consumption	26W(White & White); 17W(White & Red)
Power Factor	≥ 0.9
Lamp	LED Lamp
Lamp Life	100, 000 Hours
Photometric Property - Light color	White and Red
Main beam angle	Vertical:0°- 9° or 0.2° -9° or 0°-7°; Horizontal:± 5°
Min intensity	750cd(red); 5000cd(white)
Light Size	203203150mm(without shallow base） 220220150mm(with shallow base）
Weight	3.5Kg(without shallow base） 6.1Kg(with shallow base
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main Beam	Actual avg.cd
H	V
OS-RCL-02-XX(L) - ICAO Figure A2-7/ FAA L-850A	7184
Red - 750	1567
ICAO Figure A2-6 - ±5°	7381
1 - Shallow base	Driver assembly
2 - O Sealing ring	Waterproof connector
3 - Shallow base cover	O Sealing ring
