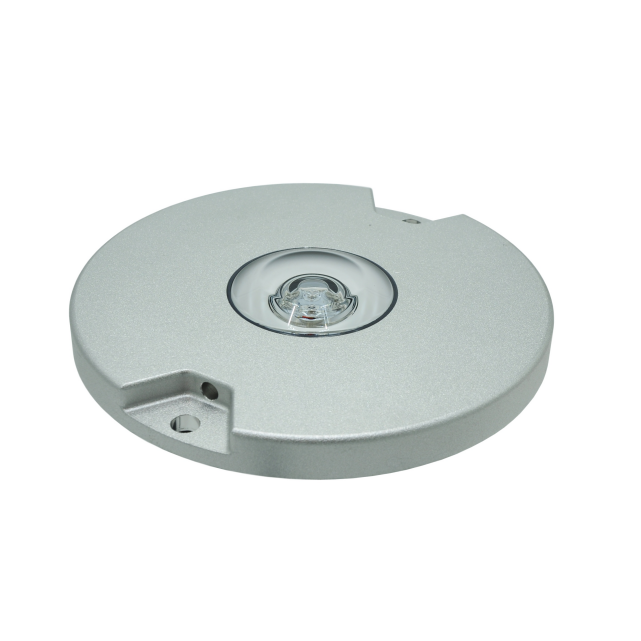

OS-TEL-02-B(L) LED Inset Taxiway Edge Light
Short Description:
Altiglo OS-TEL-02-B(L) LED inset taxiway edge light – the ultimate solution for enhancing safety and visibility on airport taxiways. Designed with cutting-edge technology and built to withstand the rigors of airfield operations, this innovative lighting system is essential for modern aviation infrastructure. Enhance the safety and efficiency of your airfield operations with our LED inset taxiway edge light . Whether you are upgrading your current lighting system or building a new facility, our state-of-the-art solution will ensure that your taxiways are clearly marked and easily navigable, contributing to the overall safety of aircraft and personnel. Illuminate your airfield with confidence and reliability – choose the Airfield Use LED Inset Taxiway Edge Light today!
Item: OS-TEL-02-B(L)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-TEL-02-B(L)- Category
- Inset Taxiway Lighting, Taxiway Lighting Series
- Item: OS-TEL-02-B(L)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- IP grade: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A~6.6A
- Rated power: 7W
| Item | OS-TEL-02-B(L) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| IP grade | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A~6.6A |
| Rated power | 7W |
| Power Factor | ≥ 0.9 |
| Lamp | LED Lamp |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | Blue |
| Main beam angle | Vertical:0°- 6° or 6°- 75° or 1°- 6°; Horizontal:360° |
| Min intensity | 2cd |
| Light Size | 203*203*150mm(without shallow base） 220*220*150mm(with shallow base） |
| Weight | 3.5Kg(without shallow base） 6.1Kg(with shallow base） |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main Beam | Actual min. (cd) |
| H | V |
| OS-TEL-02-B(L) - ICAO 5.3.17.8 | 2.6 |
| 6°—75° - 0.2 | 0.2 |
| FAA L-852T - 360° | 2.8 |
| 1 - Shallow base | Driver assembly |
| 2 - O Sealing ring | Waterproof connector |
| 3 - Shallow base cover | O Sealing ring |
Typically specified for Inset Taxiway Lighting, Taxiway Lighting Series projects.
Common use cases include in-pavement taxiway edge light (led), inset type, led inset omnidirectional taxiway edge lights, led inset taxiway edge lighting, products, taxiway edge inset 8 and 12 led.
