Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller

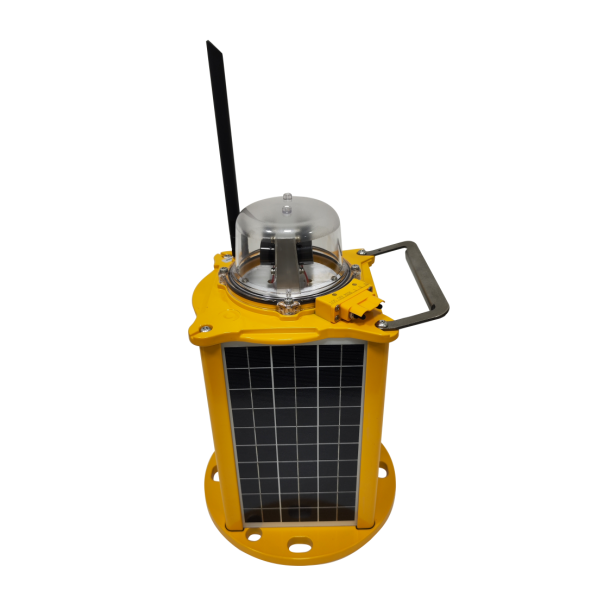

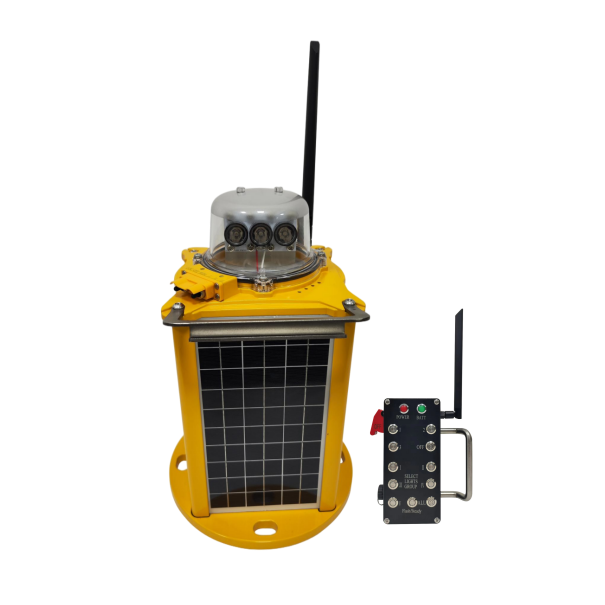

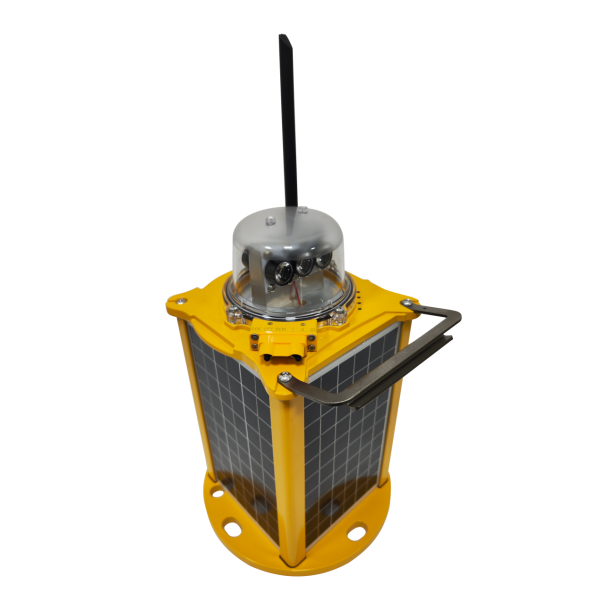

QCL490-S-SBL-XX Led Portable Solar Radio Controlled Taxiway Stop Bar Light
Short Description:
Altiglo LED portable radio controlled solar powered taxiway stop bar light is designed specifically for the demanding environment of airports, this state-of-the-art lighting solution ensures optimal visibility and guidance for aircraft during taxiing operations.The fixture is a revolutionary product that combines advanced technology with practical design. It enhances safety, reduces energy costs, and provides airports with a reliable solution for effective taxiway management. Upgrade your airport’s lighting system today and experience the difference in operational efficiency and safety.Solar panel:
Solar module, mono-crystalline silicon 12V/4*5W
LED Life Time:100,000Hours
Color: Red
IP grade: IP68
Item: QCL490-S-SBL-XX
ELECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
- SKU
QCL490-S-SBL-XX- Category
- Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller
- Item: QCL490-S-SBL-XX
- ELECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
- Light intensity: 3000-10, 000cd
- Horizontal Divergence: 360 Degree
- LED Color: Red
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Fixed mode
- Photocell sensitivity: 70-100 Lux
| Item | QCL490-S-SBL-XX |
|---|---|
| ELECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | 3000-10, 000cd |
| Horizontal Divergence | 360 Degree |
| LED Color | Red |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Fixed mode |
| Photocell sensitivity | 70-100 Lux |
| Autonomy | 30 – 120hrs(Autonomy can be changed according to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| Frequency | 900MHz or 2.4 GHz |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP68 |
| Weight | 6.4KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Suitable areas: | PSH≥3 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Typically specified for Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller projects.
Common use cases include airfield beacon light, airport beacon light, airport lighting, faa rotating beacon, identification beacon, identification beacon aerodrome.
