Portable Solar Airfield Lighting, Standard Solar Lighting
Short Description:

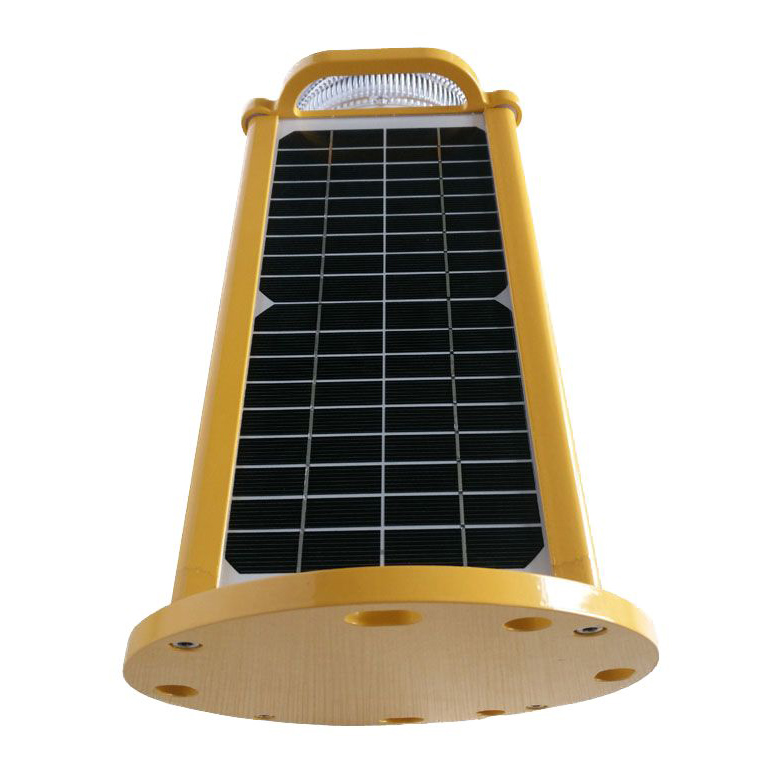

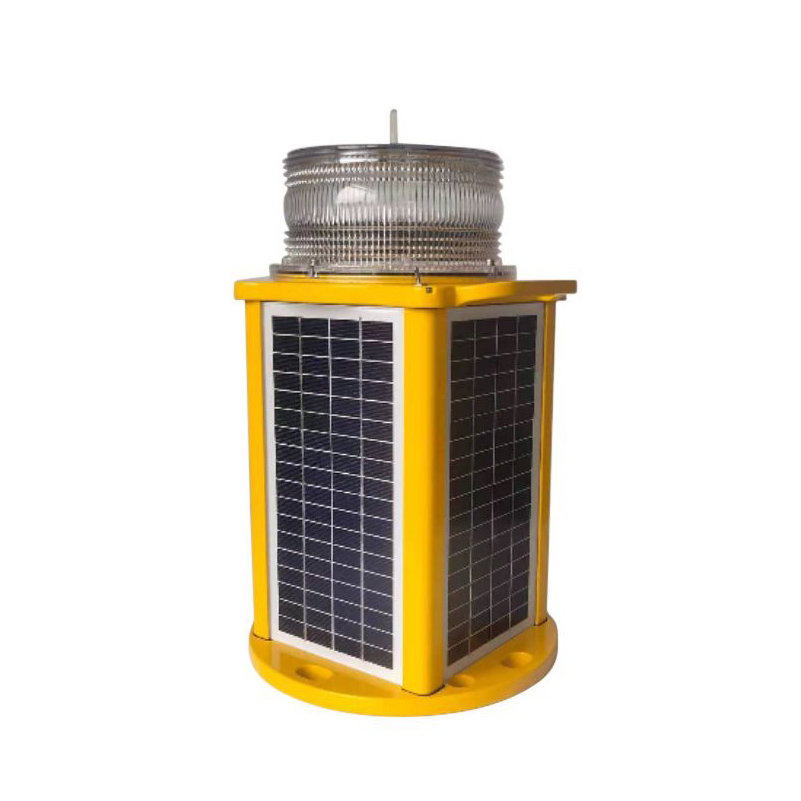

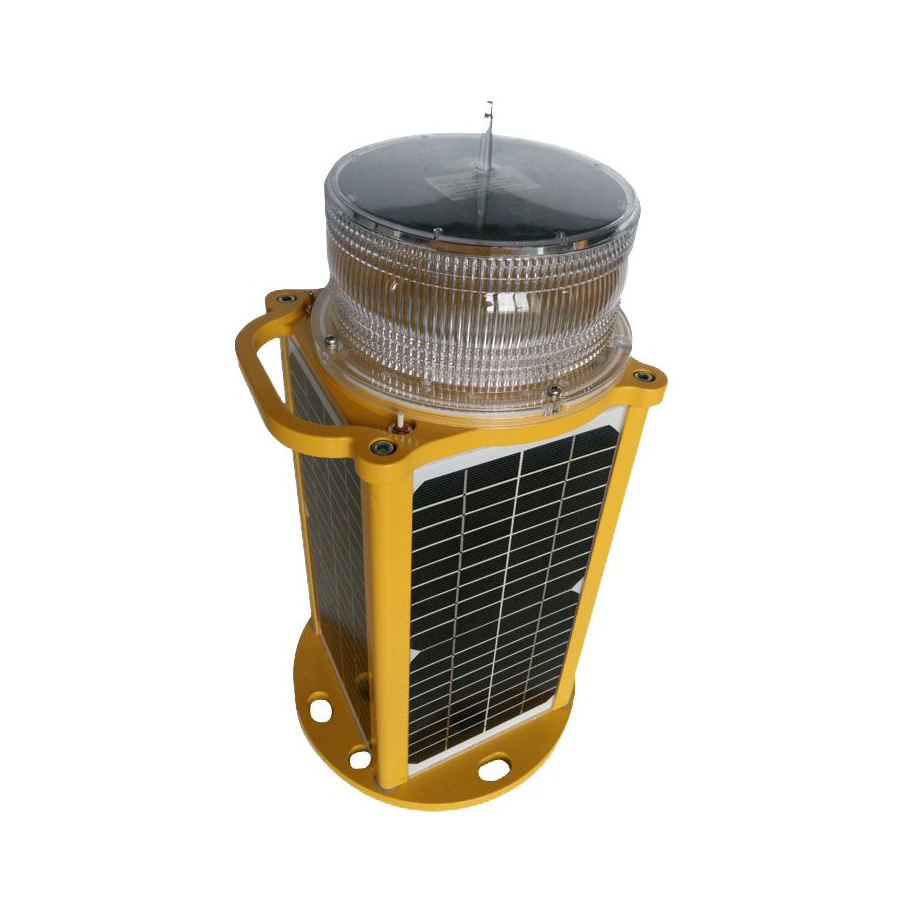

Product name:LED Portable Solar Runway(Taxiway) Light
Solar panel: High efficient mono-crystalline silicon 18V/4*5 Watts
Battery capacity: 12V12AH rechargeable Lithium battery
Intensity: >50cd
Autonomy: 25 days (flashing)； 8 days(fixed)
Suitable areas: PSH=4
Materials:Lens-PC Body-Aluminum
Item: QCL50
ELECTRICAL CHARACYERISTIC - Effective Intensity: > 50 Candela
Downloads
QCL50| Item | QCL50 |
|---|---|
| ELECTRICAL CHARACYERISTIC - Effective Intensity | > 50 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red, White, yellow, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Illumination | Ultra-bright LEDs or NVG-compatible infrared (IR) LEDs |
| Woke mode | Adjustable flashing and fixed mode |
| Flash Pattern (optional) | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Autonomy | 25 days(flashing), 8 days(steady burning) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 18V/4*5W |
| Solar Efficiency | 14% |
| Battery capacity | High-efficiency 12V12Ah Lithium battery |
| B attery replacement | R eplaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 7 |
| Weight | 6.4 KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Suitable areas | PSH≥ 3 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| Dimensions | 414.5mm H, 234mm Diameter |
| OTHERS - Warranty | 5 years for light 2 years for battery 10 years for Solar panel |
| Optional | Flashing pattern(20–60FPM) GPS Synchronization function NVG-compatible infrared (IR) LEDs |
Typically specified for Portable Solar Airfield Lighting, Standard Solar Lighting projects.
Common use cases include airport lighting, airport solar led runway edge light and airport taxiway lighting, high quality portable solar airport taxiway led lighting / runway edge lighting, led portable solar runway and taxiway light, portable & temporary airfield lights, portable runway lights.
