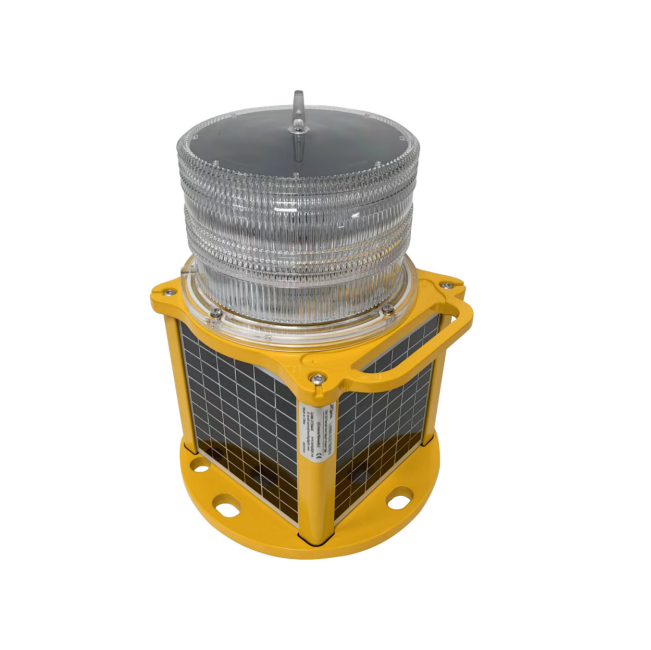

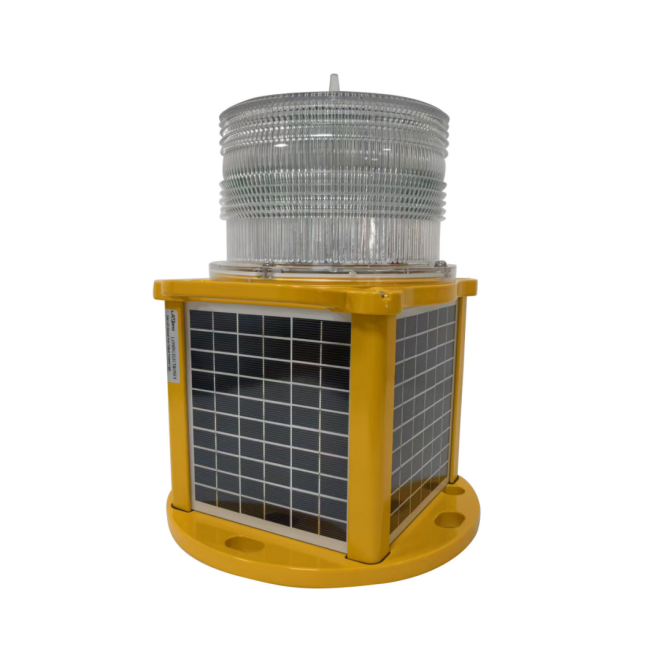

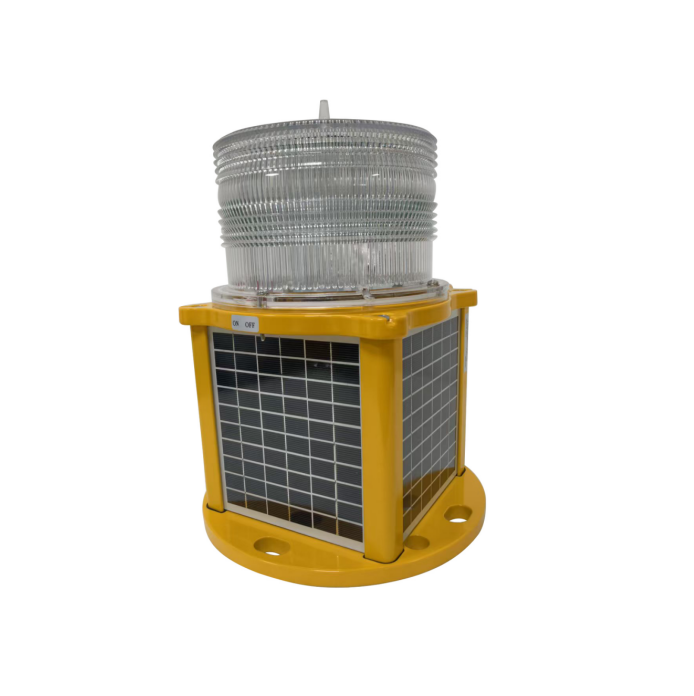

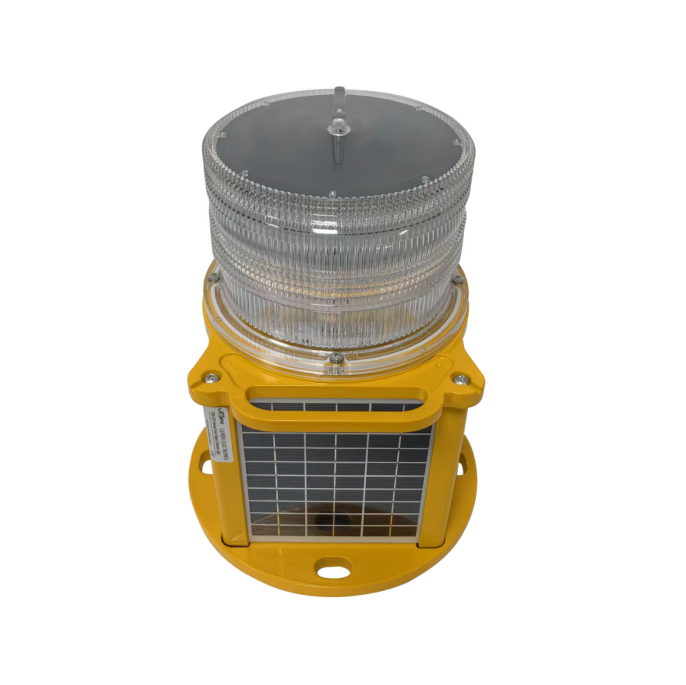

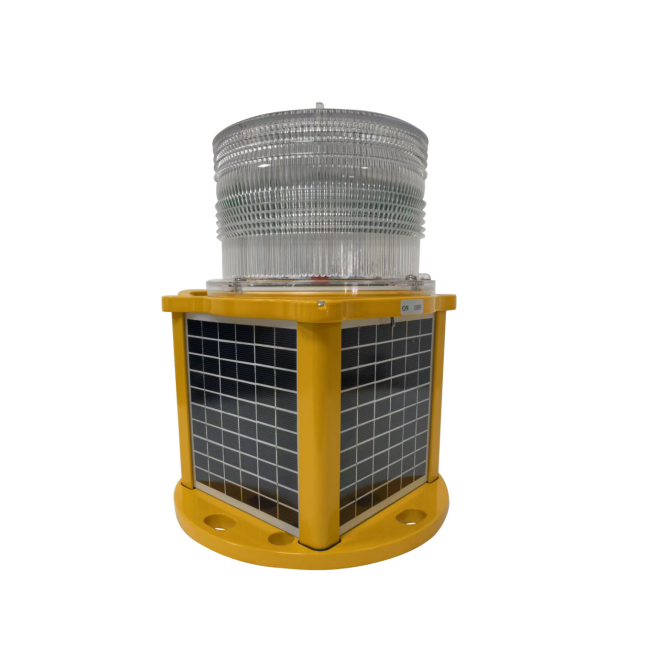

SB40 Solar Powered Marine Light(3-5nm)

Short Description:

Product name: LED Solar Powered Marine Light Steady Type or Flashing Type(Optional)

Solar panel: High efficient mono-crystalline silicon 10 Watts

Battery capacity: 12V10AH rechargeable Lithium battery

Nominal Night Range: 3-5nm

Autonomy: 15 days (flashing); 8 days(fixed)

Materials: Lens-PC Body-Aluminum

Item: SB40

ELECTRICAL CHARACTERISTIC - Visible distance: 3-5nm

Downloads

Send Enquiry

Item	SB40
ELECTRICAL CHARACTERISTIC - Visible distance	3-5nm
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern(optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	15 days(flashing), 8 days(steady burning)
Alarm type	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V/ 10 W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V10Ah Lithium battery
Battery replacement	R eplaceable
MECHANICAL S TRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP6 8
Weight	4.6 KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ + 55 ℃
Suitable areas	PSH≥ 3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years for light
