LED Marine Lanterns, Regular Type, Solar Powered Marine Lanterns

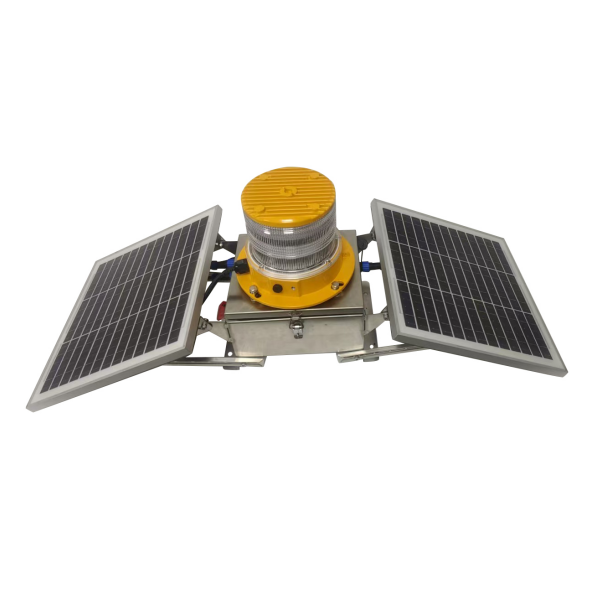

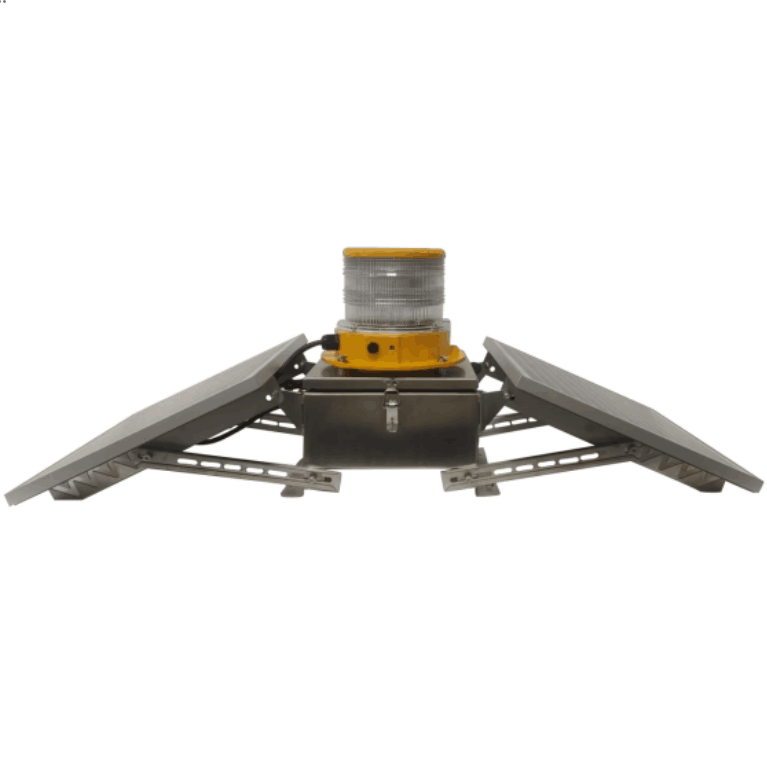

SB990 LED Solar Powered Marine Light(10-15nm)
Short Description:
Solar panel:Solar module, mono-crystalline silicon 18V 20W*2*2
Intensity: >1600cd
Autonomy: 20 days(flashing), 10 days(steady burning)
Suitable areas: PSH=4
Item: SB990
E LECTRICAL CHARACTERISTIC - Effective Intensity: > 160 0 Candela
Downloads
- SKU
SB990- Category
- LED Marine Lanterns, Regular Type, Solar Powered Marine Lanterns
- Item: SB990
- E LECTRICAL CHARACTERISTIC - Effective Intensity: > 160 0 Candela
- Vertical Divergence: ± 7.5 Degree
- Horizontal Divergence: 360 Degree
- LED Color: Red，White, yellow, green or blue
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing or steady burning
- Flash Pattern: Flashing: 20/30/40/60FPM; Default: 40FPM;
| Item | SB990 |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | > 160 0 Candela |
| Vertical Divergence | ± 7.5 Degree |
| Horizontal Divergence | 360 Degree |
| LED Color | Red，White, yellow, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing or steady burning |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 7 0 -100 Lux |
| Autonomy | 20 days(flashing), 10 days(steady burning) |
| Alarm type: | NO & NC, dry contact relay(optional) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 18V 20W *2 |
| Solar Efficiency | 21 % |
| Battery capacity | VRLA, 12V/ 12 Ah *2 |
| B attery replacement | R eplaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Stainless steel |
| IP Ingress | IP6 5 |
| Weight | 25 KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 70 ℃ |
| Suitable areas: | PSH=4 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| Overall dimension | 550X458X 351.1(mm) |
Typically specified for LED Marine Lanterns, Regular Type, Solar Powered Marine Lanterns projects.
Common use cases include led marine lanterns, marine solar lights, nautical solar lights, products, regular type, solar boat light.
