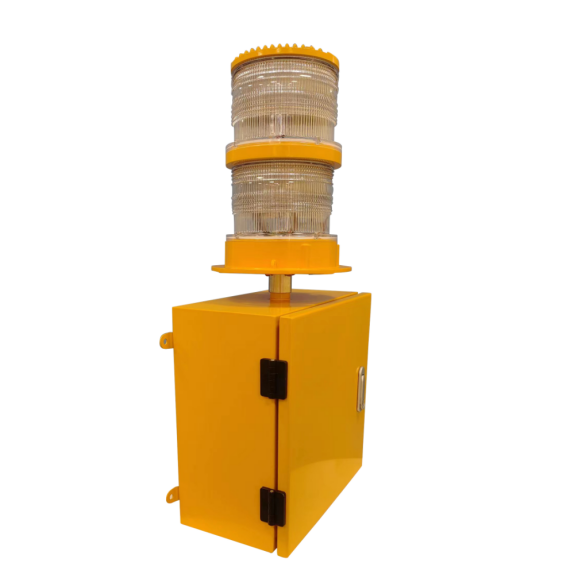

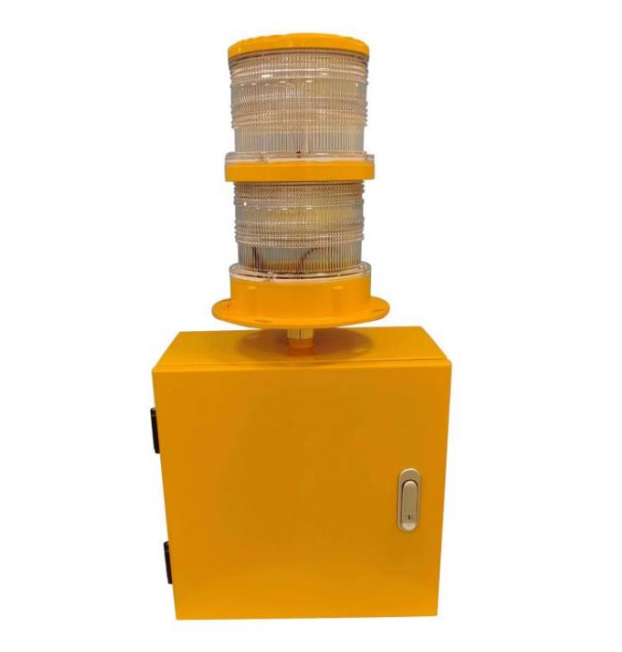

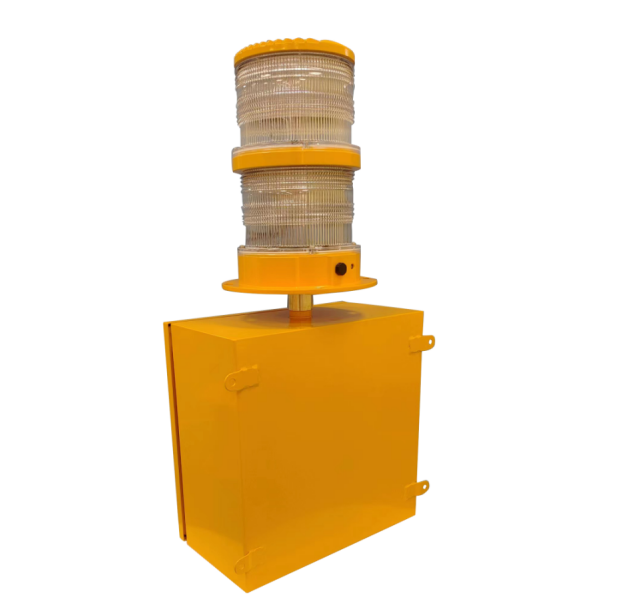

AG8A-G Medium Intensity Obstruction Light with Battery Backup System(Type A&B)
Short Description:
Product Name: Medium Intensity LED Obstruction Light(Type A&B)
Input voltage: 85VAC ~ 265VAC, 24VDC,30-60VDC or 12VDC
Effective Intensity: (Night) red:2000cd (±25%); (Daytime) white: 20000cd (±25%)
LED Lifespan: 100,000 Hours
Materials: Lens-PC; Body- Aluminum
Item: AG8A-G
E LECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 20, 000cd+25%, Night: red 2, 000cd+25%
Downloads
- SKU
AG8A-G- Category
- Medium Intensity Series, Type A Series Medium Intensity Series
- Item: AG8A-G
- E LECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 20, 000cd+25%, Night: red 2, 000cd+25%
- Vertical Divergence: 3 Degree
- Horizontal Divergence: 360 Degree
- LED Color: Red&white
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing
- Flash Pattern: Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
| Item | AG8A-G |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | Day: white 20, 000cd+25%, Night: red 2, 000cd+25% |
| Vertical Divergence | 3 Degree |
| Horizontal Divergence | 360 Degree |
| LED Color | Red&white |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Autonomy | 10 hrs( flashing) |
| Input voltage | 85-265VAC, 50/60 Hz |
| MECHANICAL STRUCTURE - Power consumption | 15W(Flashing) |

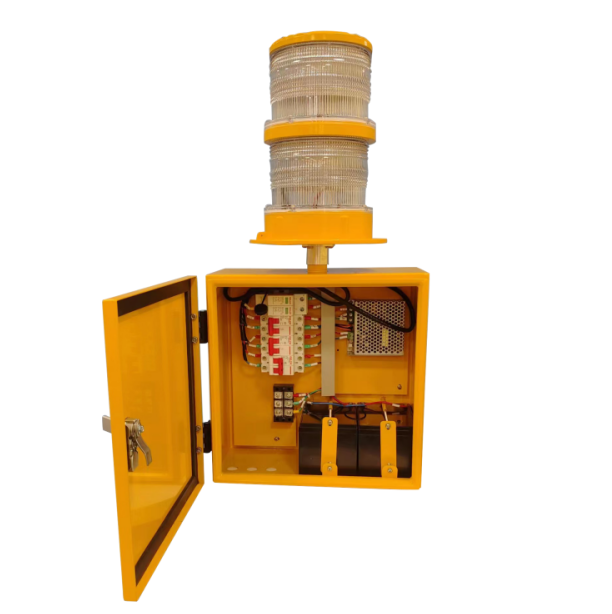

| Battery Type | 24V24AH VRLA chargeable battery |
| Lens | Polycarbonate, UV Stabilize |
| Body | Yellow powder coated Aluminum |
| IP Ingress | IP65 |
| Weight | 15KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Surge protection | 20KV |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization |
Typically specified for Medium Intensity Series, Type A Series Medium Intensity Series projects.
Common use cases include aviation lamp, aviation lighting, communication tower lighting, medium intensity series, obstacle light, obstruction lighting.
