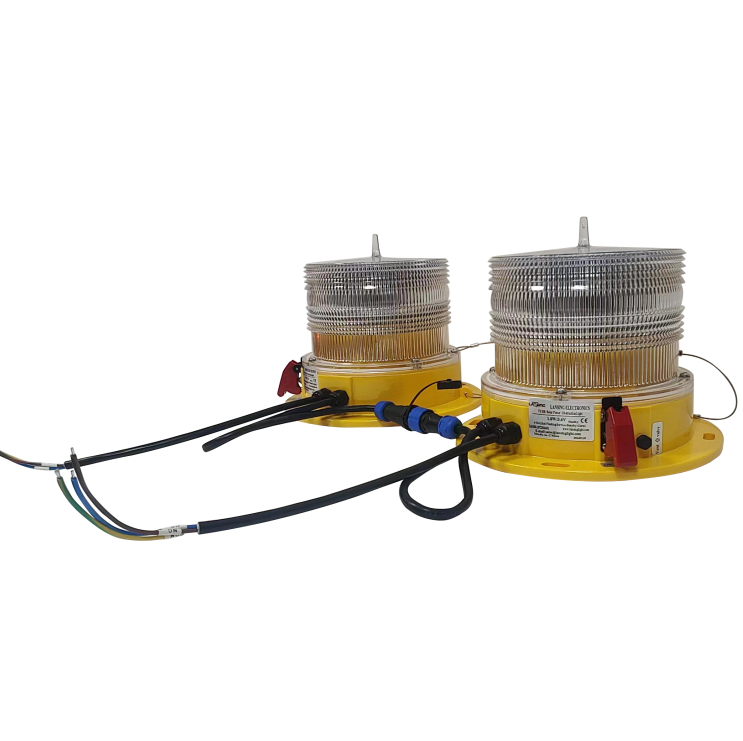

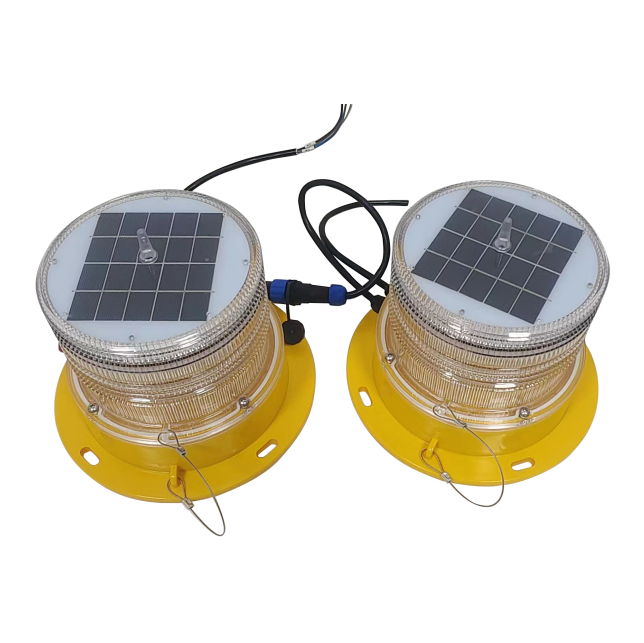

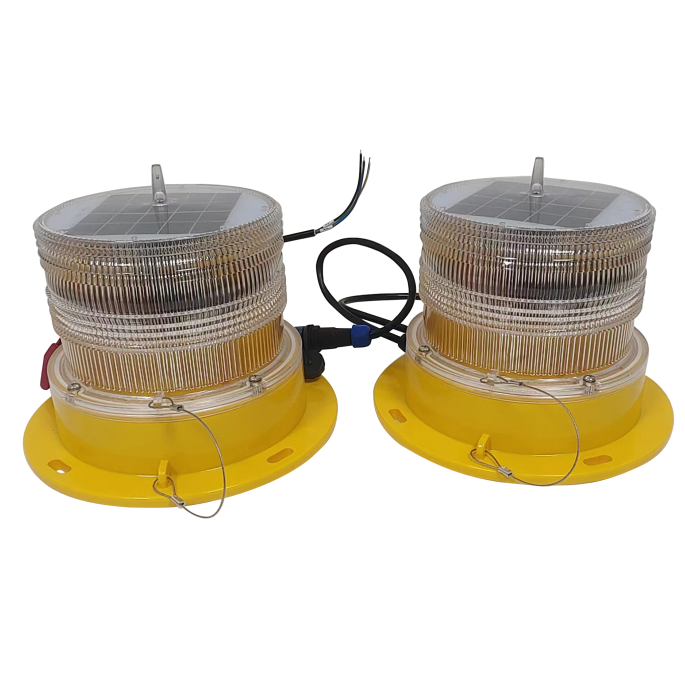

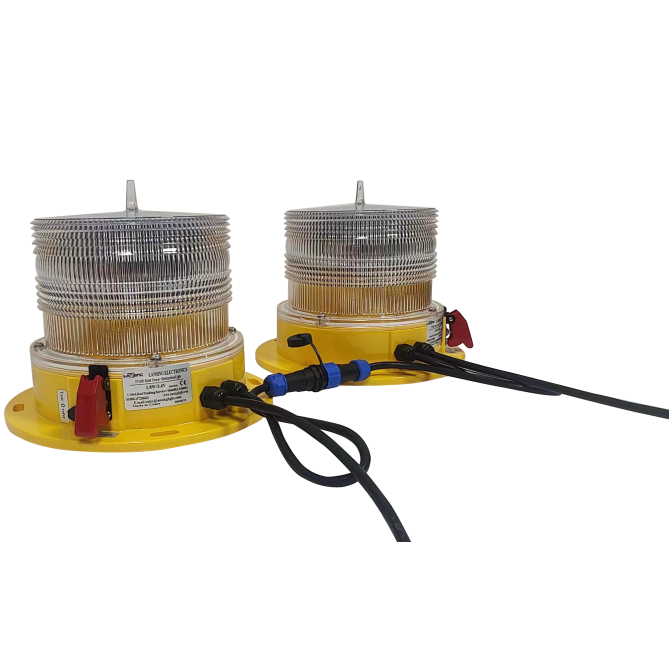

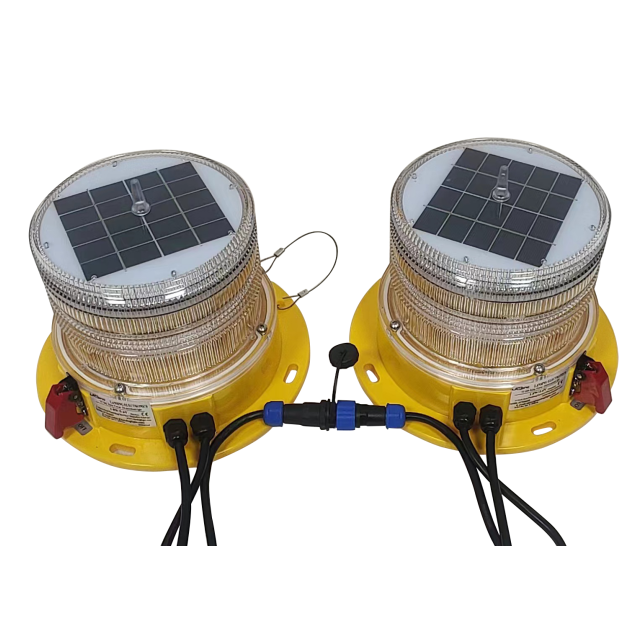

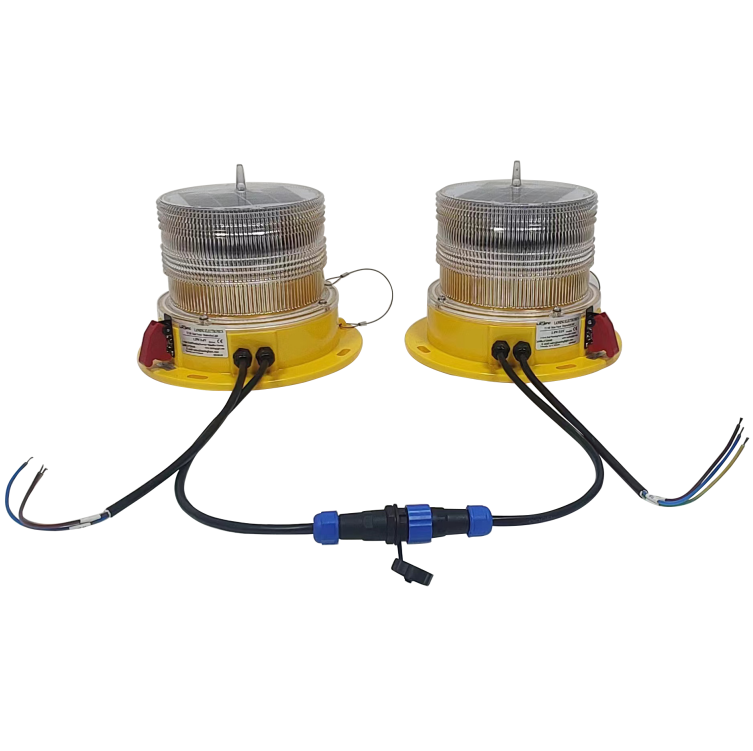

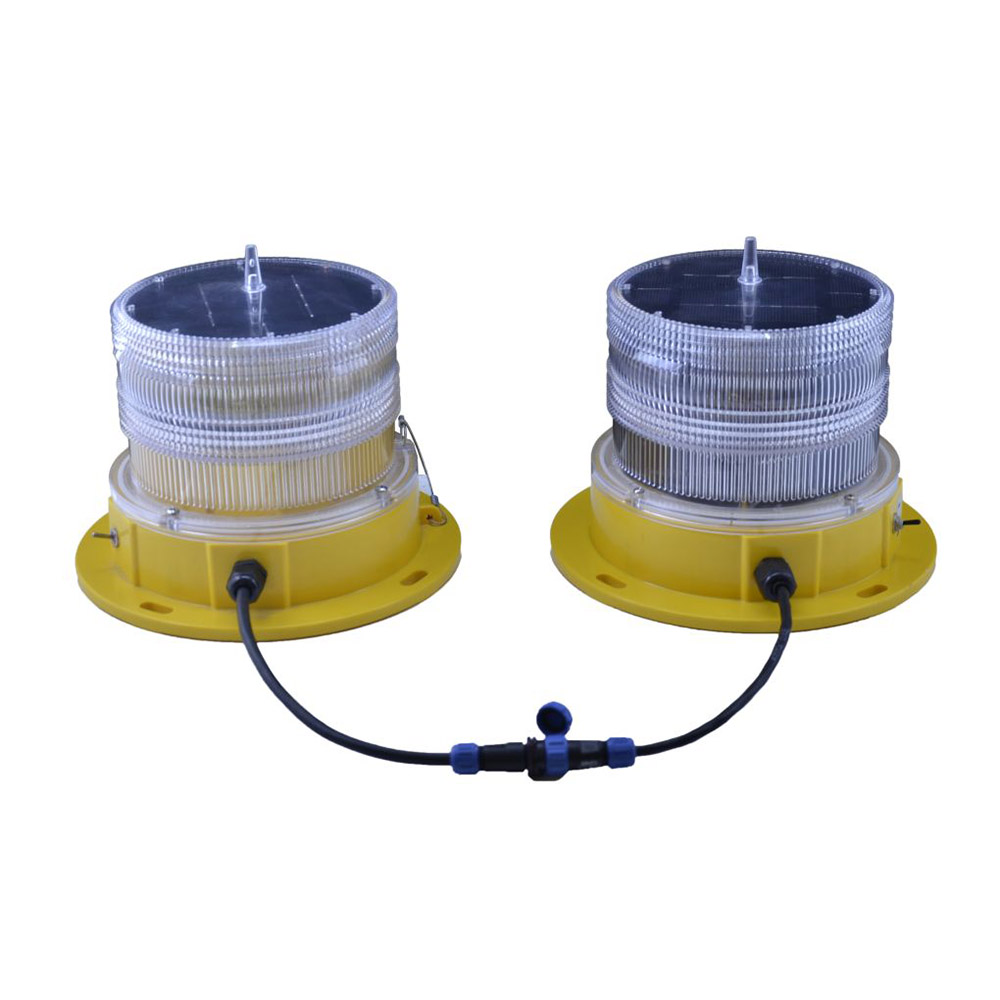

GY90D LED Dual Low intensity Solar Powered Obstruction Light(Type A)
Short Description:
Solar panel: High efficient mono-crystalline silicon 5V1.8Watts
Battery capacity: 3.6V8AH rechargeable NiMH battery
Intensity: >10cd(flashing); >6cd(fixed)
Autonomy: 20 days (flashing); 10 days(fixed)
Suitable areas: PSH=4
Materials: Lens-PC Body-Aluminum
Item: GY90D
ECLECTRICAL CHARACTERISTIC - Effective Intensity: >10 Candela
Downloads
- SKU
GY90D- Category
- Low Intensity Series Solar Powered Series, Solar-Powered Series
- Item: GY90D
- ECLECTRICAL CHARACTERISTIC - Effective Intensity: >10 Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Red (for obstruction). White, yellow, green and blue are available for other applications
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing or steady burning
- Flash Pattern(optional): Flashing: 20/30/40/60FPM; Default: 40FPM;
| Item | GY90D |
|---|---|
| ECLECTRICAL CHARACTERISTIC - Effective Intensity | >10 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red (for obstruction). White, yellow, green and blue are available for other applications |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing or steady burning |
| Flash Pattern(optional) | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Autonomy | 20 days(flashing), 7 days(steady burning) |
| Alarm type | NO & NC, dry contact relay(optional) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 5V 1.8W |
| Solar Efficiency | 21% |
| Battery capacity | NIMH, 3.6V/8Ah |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP67 |
| Weight | 4.5KG(Polycarbonate base) 6.5KG(Aluminum base) |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Suitable areas | PSH≥3 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) B uilt-in photocell NO & NC, dry contact relay |
Typically specified for Low Intensity Series Solar Powered Series, Solar-Powered Series projects.

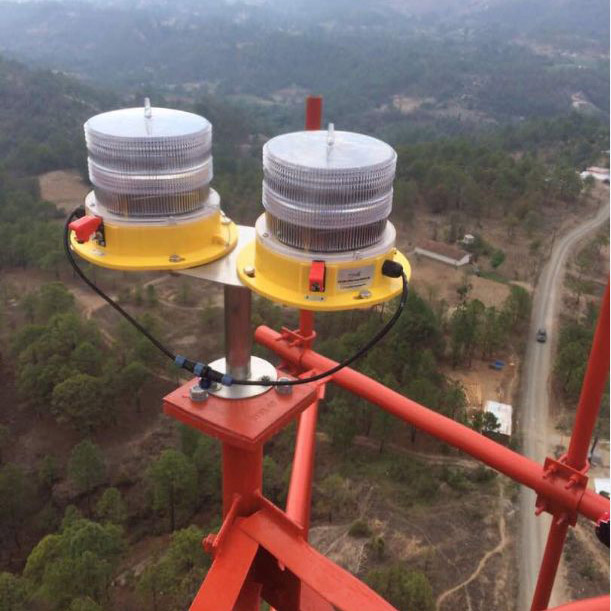

Common use cases include aviation light fitting, aviation light for tower, aviation warning lights, building aviation light, communication tower lighting, low intensity series.
