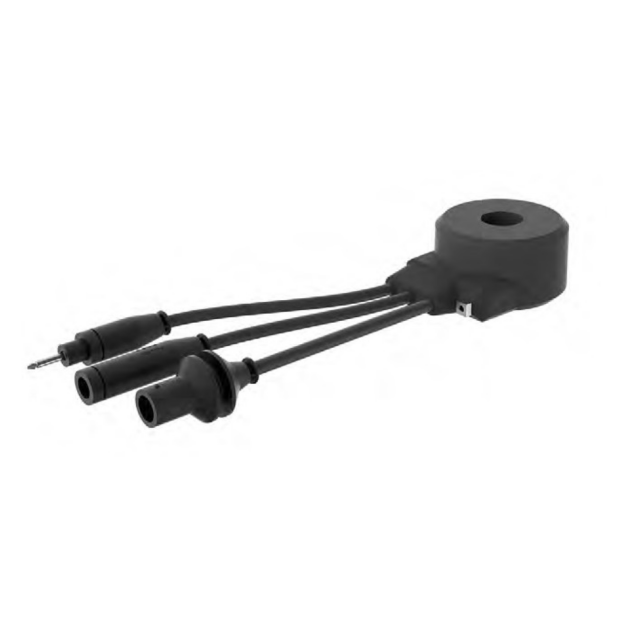

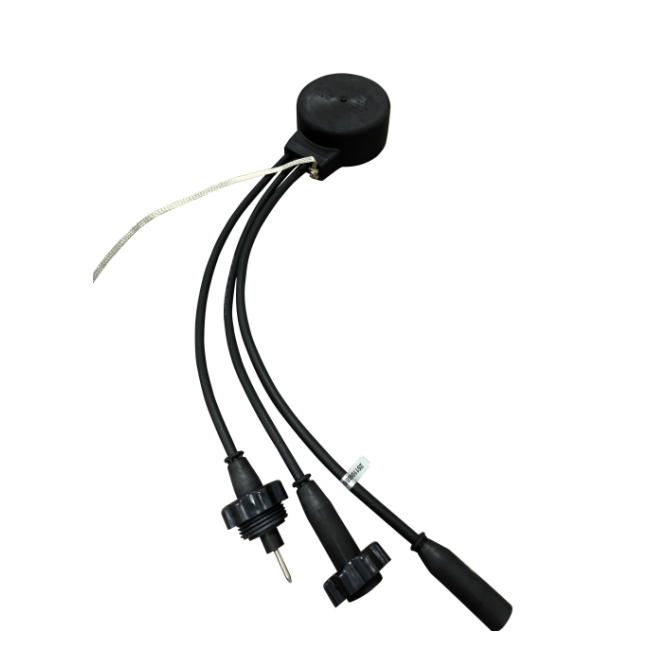

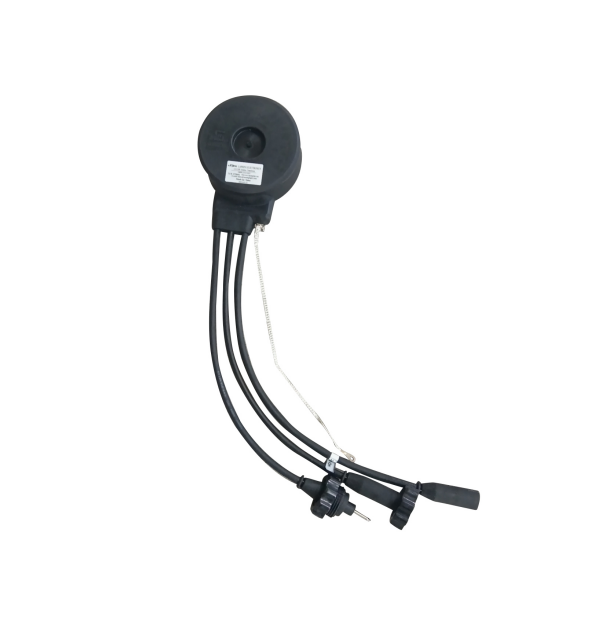

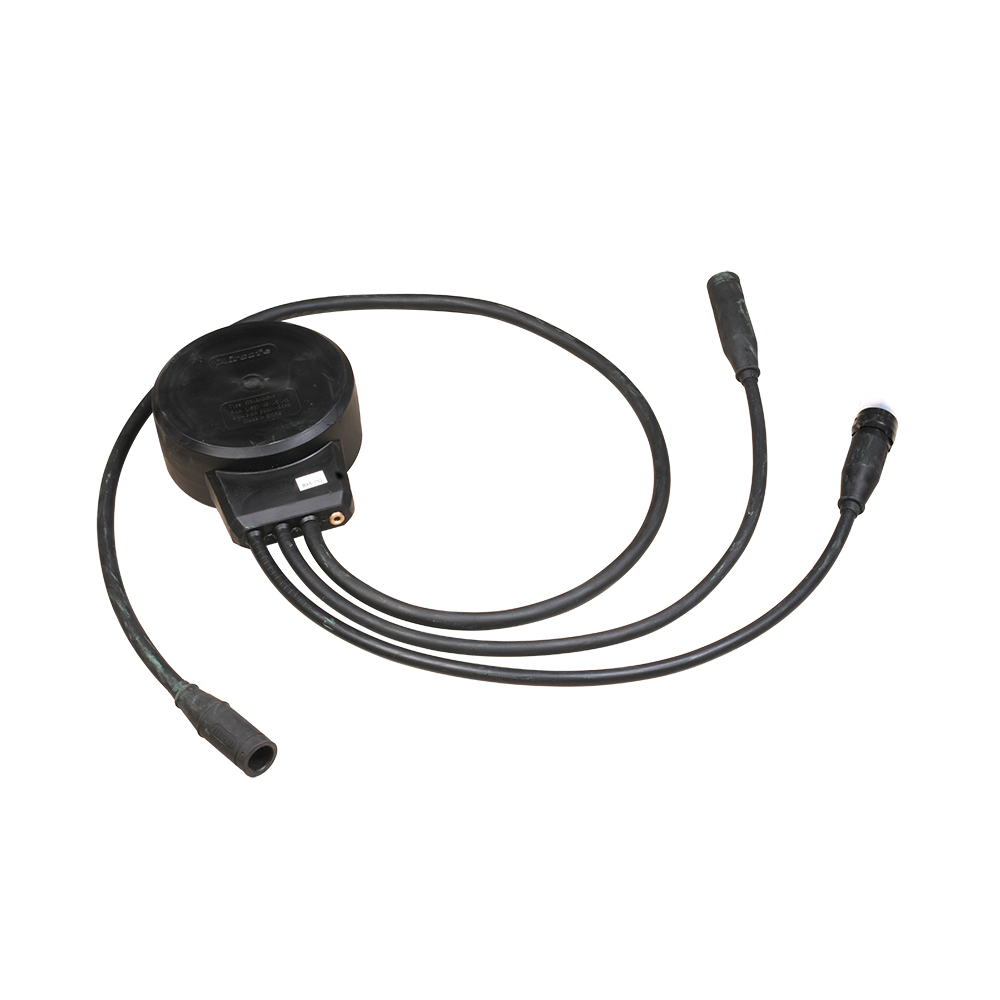

OS-GL Series Isolation transformer

Short Description:

Output current: 2.8 – 6.6 A

Power consumption: 15-300W

Power factor: 0.9

Material: Specail rubber and plastics

Pressure resistance: 5000V

Operating temperature: -55 – 65 °C

FAA Specified number - Type (W): Open circuit voltage of secondary circuit (V)

L-830/8 31- 16 - 10/15: <8

Downloads

Send Enquiry

FAA Specified number - Type (W)	Open circuit voltage of secondary circuit (V)
L-830/8 31- 16 - 10/15	<8
L-830/8 31- 17 - 20/15	<8
L-830/8 31- 1 - 30/15	<25
N/A - 50	<25
L-830/8 31- 3 - 65	<30
L-830/8 31- 4 - 100	<70
L-830/8 31- 18 - 150	<70
L-830/8 31- 6 - 200	<100
L-830/8 31- 10 - 300	<135
1 - Ground NutM5(Earthing Type)	Style 9 Primary socket
2 - Isolation transformer body	Secondary socket cable
3 - Primary plug/socket cable	Style 8 Secondary socket
4 - Style 2 Primary plug
