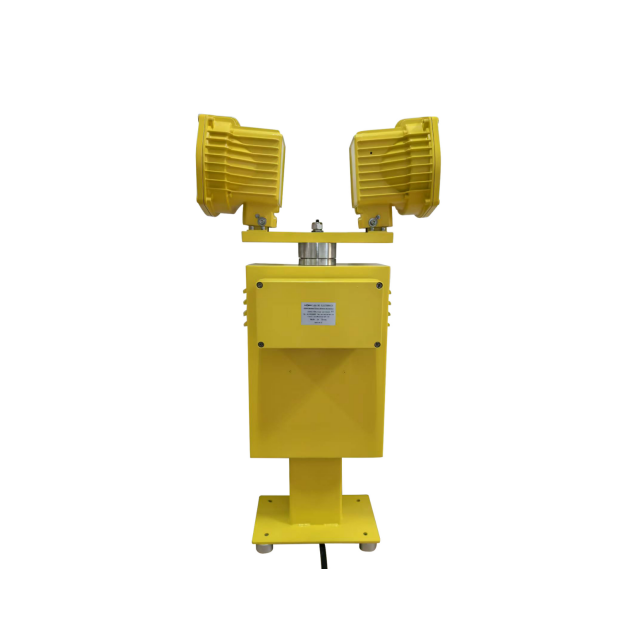

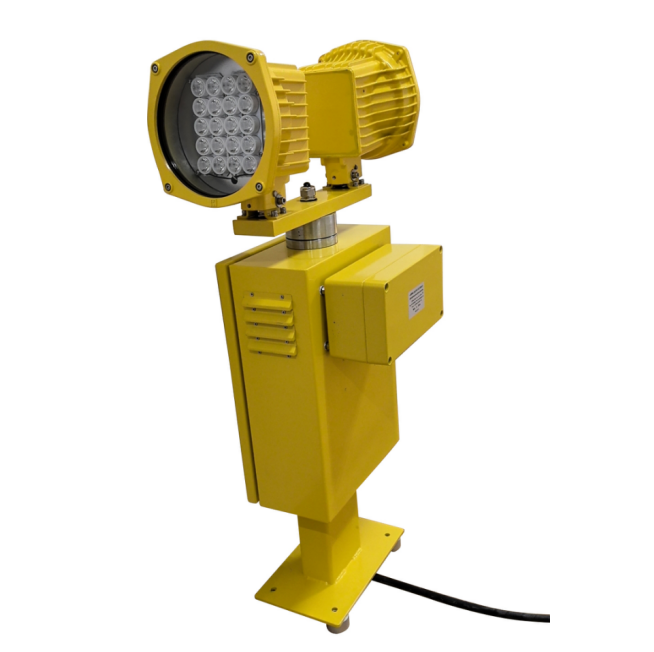

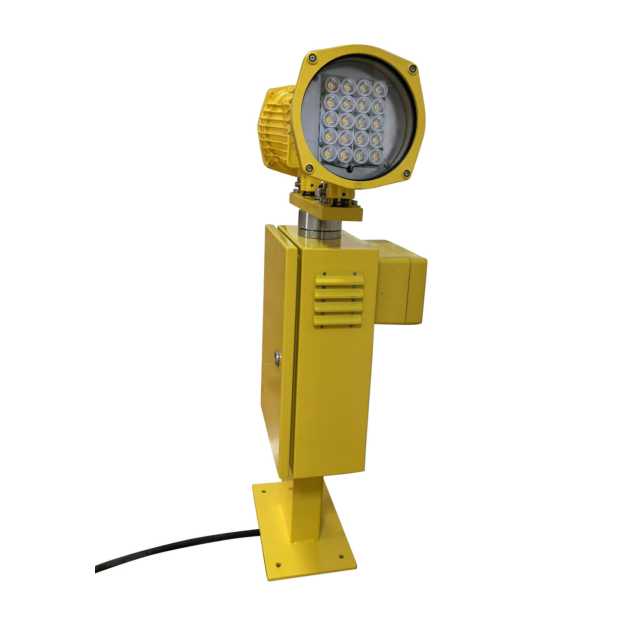

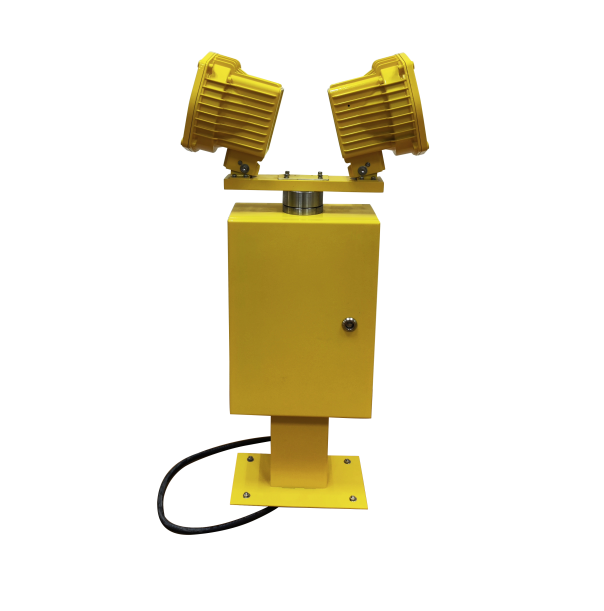

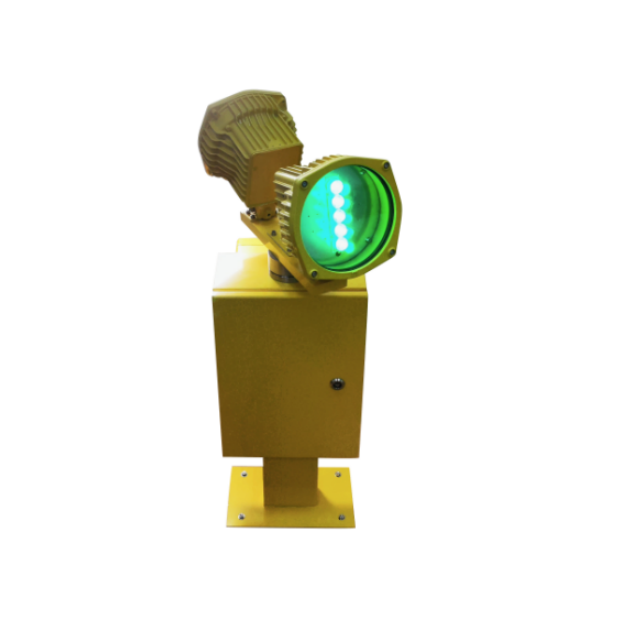

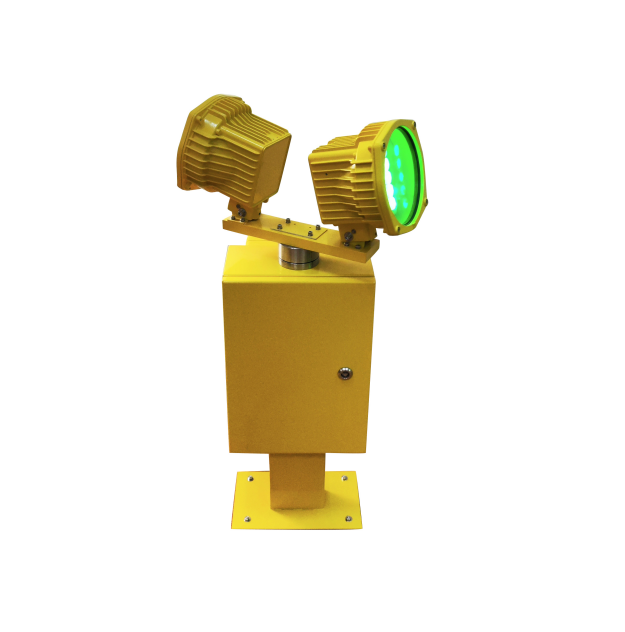

OS-RBM-L L801A(S) Medium Intensity LED Rotating Aeronautical Beacon

OS-RBM-L L801A(S) Medium Intensity LED Rotating Aeronautical Beacon - Image 3

OS-RBM-L L801A(S) Medium Intensity LED Rotating Aeronautical Beacon - Image 4

OS-RBM-L L801A(S) Medium Intensity LED Rotating Aeronautical Beacon - Image 5

OS-RBM-L L801A(S) Medium Intensity LED Rotating Aeronautical Beacon - Image 6

Short Description:

Altiglo OS-RBM-L L801 A(S)Low Intensity LED Rotating Aeronautical Beacon is a cutting- edge lighting solution that offers superior visibility, durability, energy efficiency,and advanced control options.Its state-of-the-art LED technology and robust design make it an ideal choice for airport operators seeking reliable and high-performance lighting solutions. With its ability to enhance safety, efficiency, and sustainability,the LED Rotating Beacon is an essential component of modern airport lighting systems.

Power supply:200VAC to 240VAC 50/60Hz

Power consumption:165W LED

Life Time:100,000Hours

Color:CY= Clear and Yellow,CG= Clear and Green

IP grade:IP65

Item: OS-RBM-L

Environmental Property - Environmenta l Temperature: - 40 ℃~+55℃

Downloads

Send Enquiry

SKU: OS-RBM-L
Category: Approach Lighting, Elevated Approach Lighting

Item	OS-RBM-L
Environmental Property - Environmenta l Temperature	– 40 ℃~+55℃
Precipitation	IP6 5
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	200VAC to 240VAC 50/60Hz
Power consumption	LED 165 W
Lamp	LED
Lamp Life	100, 000Hours
Photometric Property - Light color	CY = Clear and Yellow CG = Clear and Green
Flashing rate	25 or 37.5 Times/min
Torque of drive motor	40N.m
Packing Size	550x550x940mm³
Net Weight	25.5kg
Gross Weight	46 Kg
Surface Treatment - Treatment	Anodizing coating
Color	Yellow
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Beacon Type (Note 1) - Elevation Angle in degrees	Minimum Effective Intensity of Flash in candelas
L-801A& L-801S - 1 and 2	25, 000(Note 2)
3 to 7	50, 000(Note 2)
8 to 10	25, 000(Note 2)
1	Lamp head
2	Adapter
3	Turntable
4	Main Shaft
5	Flange plate
