Portable Solar Airfield Lighting, Standard Solar Lighting
Short Description:

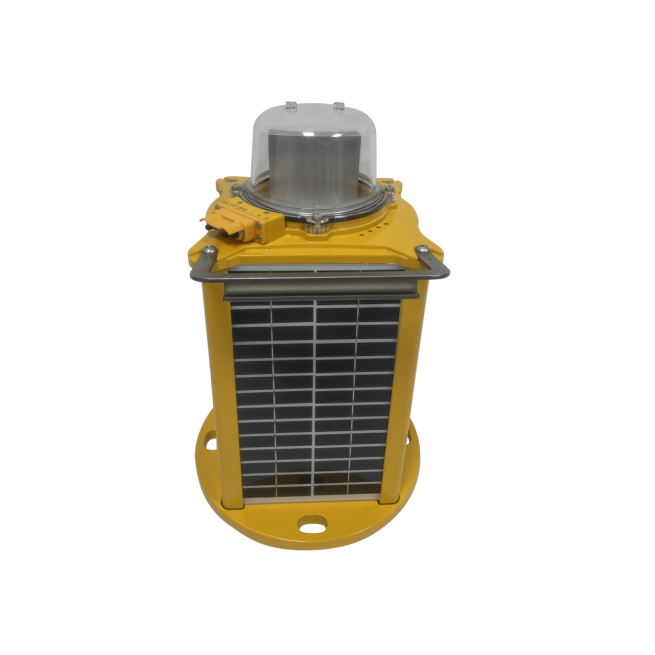

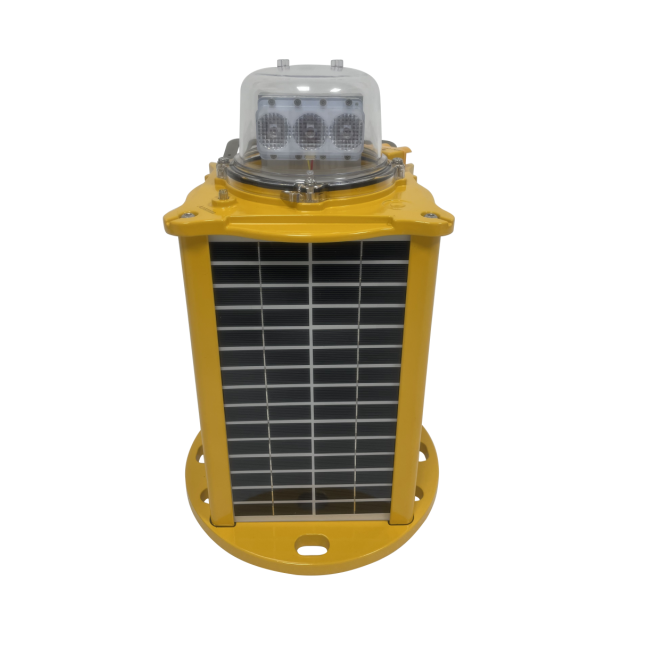

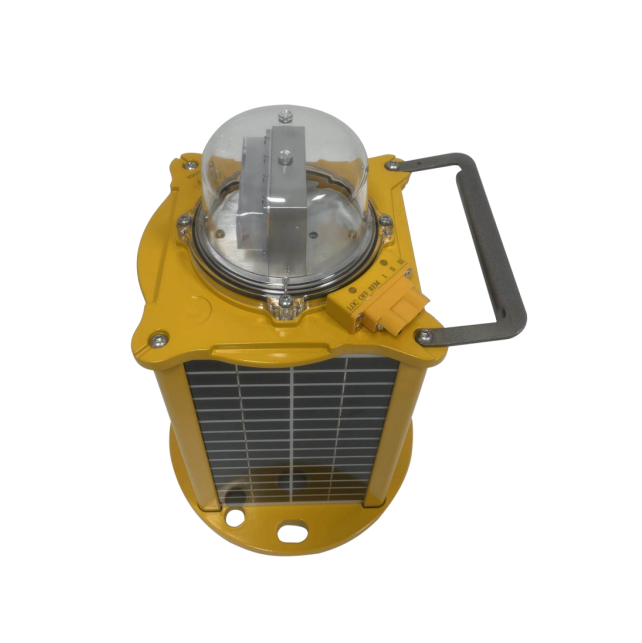

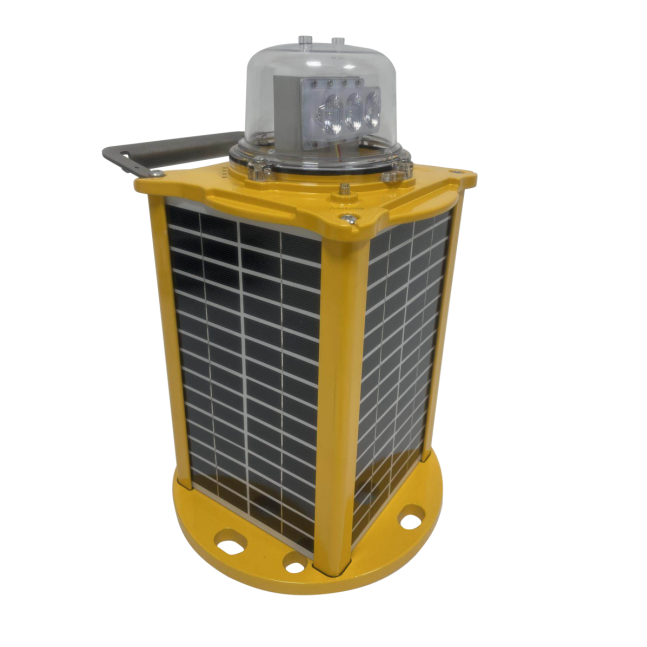

Altiglo QCL530-S-ASL Solar LED portable approach side row light – the perfect solution for illuminating your outdoor spaces while harnessing the power of the sun! Designed for versatility and efficiency, this innovative lighting system is ideal for pathways, gardens, driveways, and any area that requires reliable illumination without the hassle of wiring or electricity.Say goodbye to high electricity bills and hello to sustainable outdoor lighting with the Solar Powered LED Portable Approach Side Row Light. Illuminate your world, protect the environment, and enjoy the convenience of portable lighting today!
Solar panel: Solar module, mono-crystalline silicon 12V/4*5W
LED Life Time:100,000Hours
Color: Red
IP grade: IP68
Item: QCL530-S-ASL
E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
QCL530-S-ASL| Item | QCL530-S-ASL |
|---|---|
| E LECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | ≥5 000cd |
| Beam angle | Uni-directional |
| LED Color | Red |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Adjustable flashing and fixed mode |
| Autonomy | 4 0 hrs (at max intensity ， authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| B attery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 8 |
| Weight | 6 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years for light 1year for bttery |
| Optional | GPS Synchronization function |
Typically specified for Portable Solar Airfield Lighting, Standard Solar Lighting projects.
Common use cases include airport lighting, portable solar airfield lighting, products, standard solar lighting.
