Medium Intensity Series, Type Ab
Short Description:

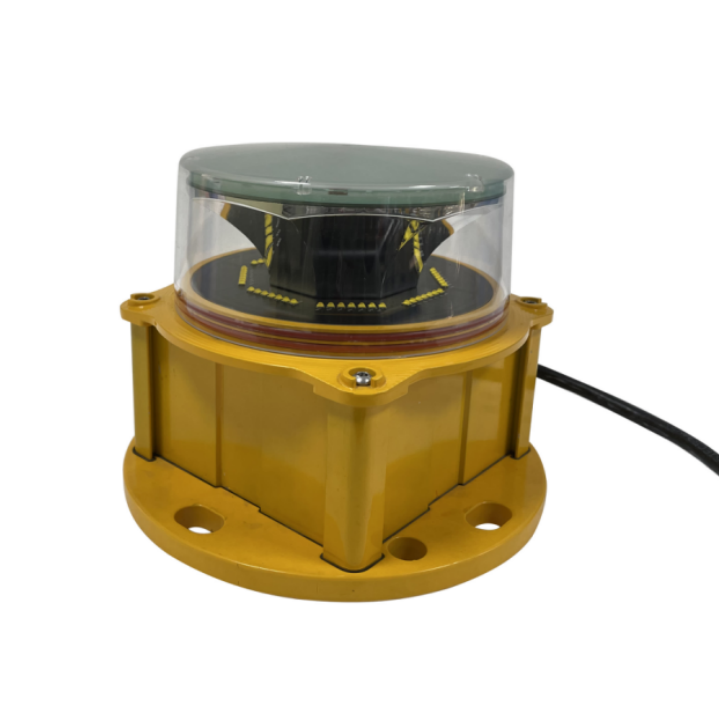

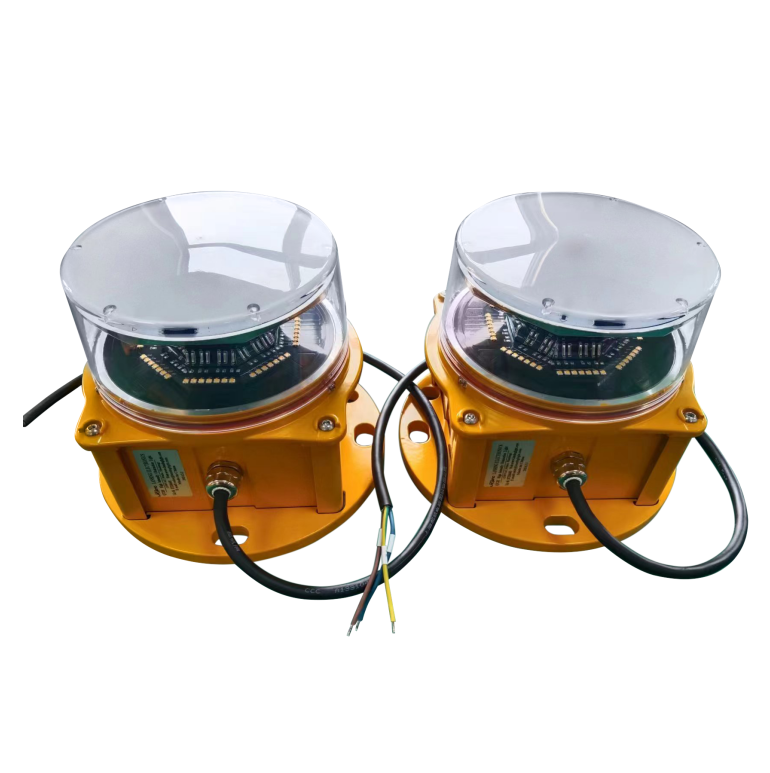

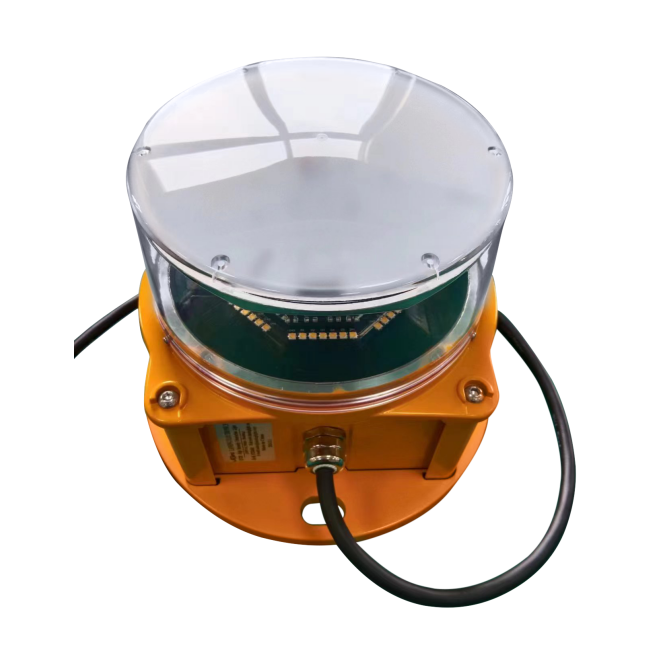

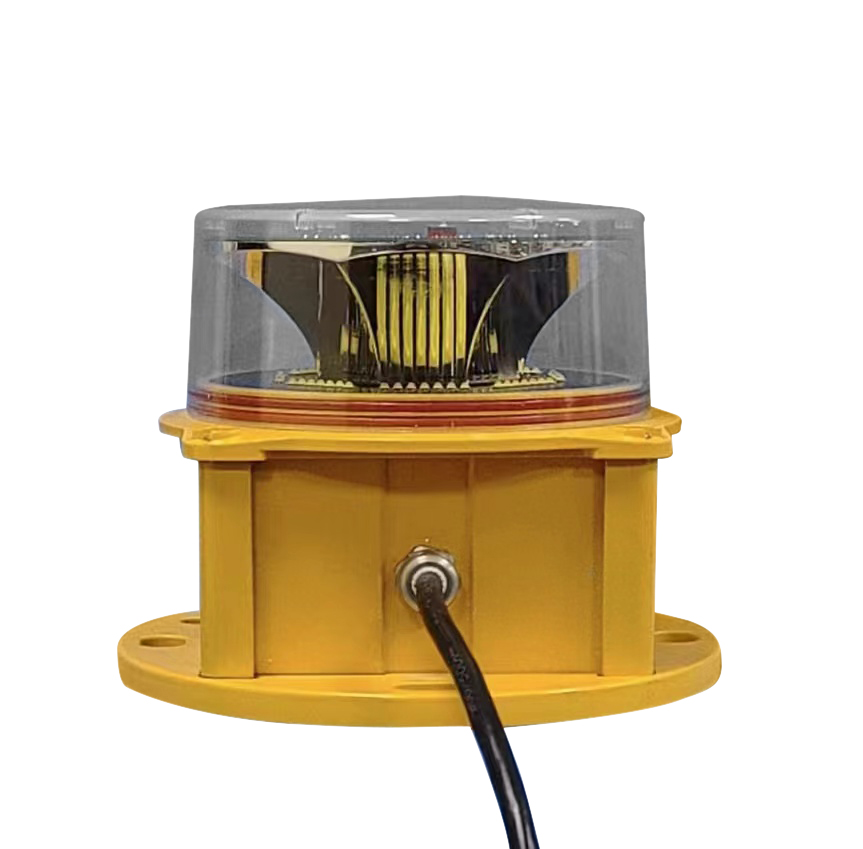

Altiglo JT8AS LED Medium intensity Type A Aviation Obstruction Light is a reliable
lighting solution for a telecommunications tower, wind turbine, or any other tall structure.Trust in our innovative technology and expert engineering to provide a
dependable and efficient lighting solution for all your aviation obstruction marking needs.
Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Effective Intensity:>2000+25% Candela
LED Lifespan:100,000 Hours
Materials:Lens-PC; Body- Aluminum
Item: JT8AS
ELECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 20, 000cd+25%, Night: red 2, 000cd+25%
Downloads
JT8AS| Item | JT8AS |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | Day: white 20, 000cd+25%, Night: red 2, 000cd+25% |
| Vertical Divergence | 3 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | White&red |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz;24VDC;30-60VDC; |
| Power consumption | 40W(Flashing) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP66 |
| Weight | 3.8KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 1 years |
| Optional | Flashing pattern(20–60FPM) B uilt-in photocell NO & NC, dry contact relay GPS Synchronization function |
Typically specified for Medium Intensity Series, Type Ab projects.
Common use cases include aircraft warning lights, aviation lighting, medium intensity series, obstacle light, obstacle light aviation lamp, obstruction lighting.
