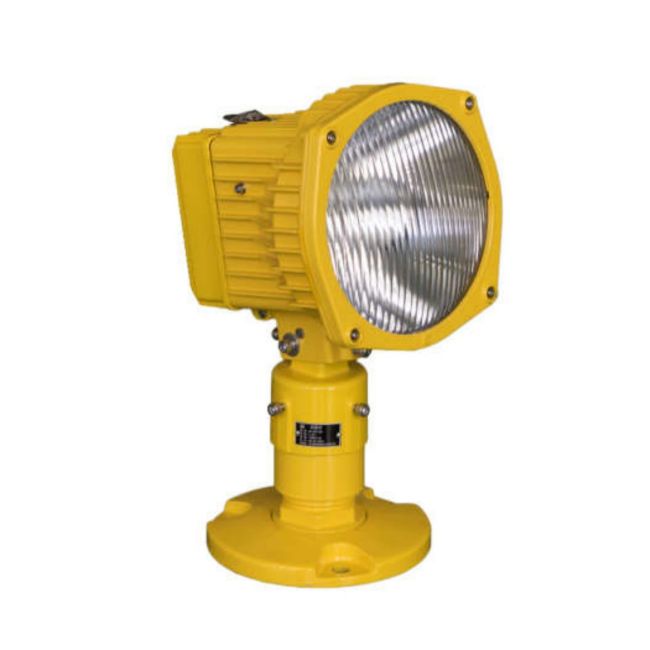

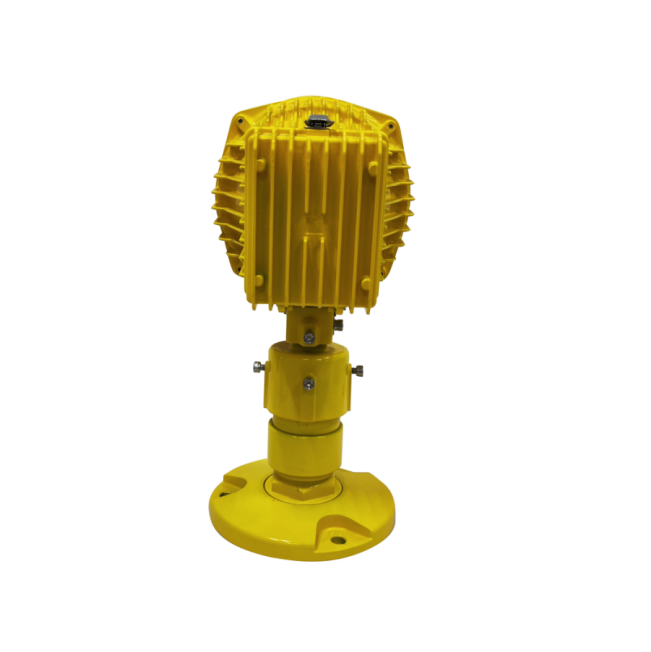

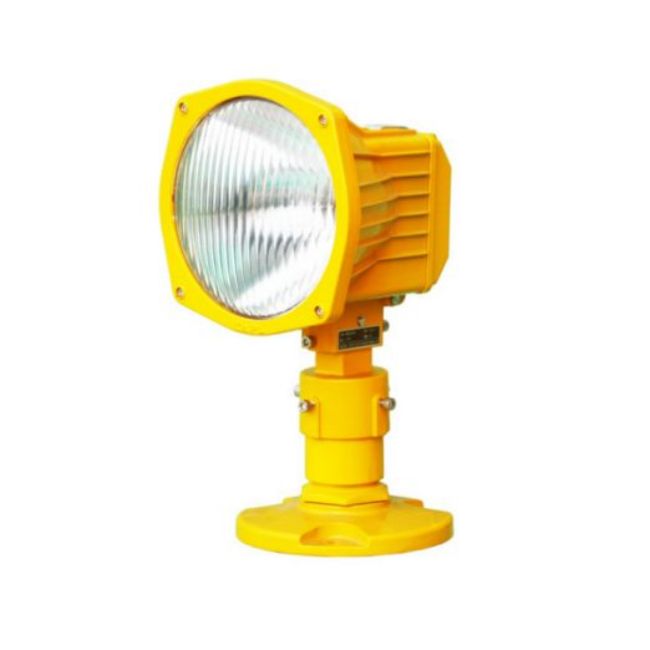

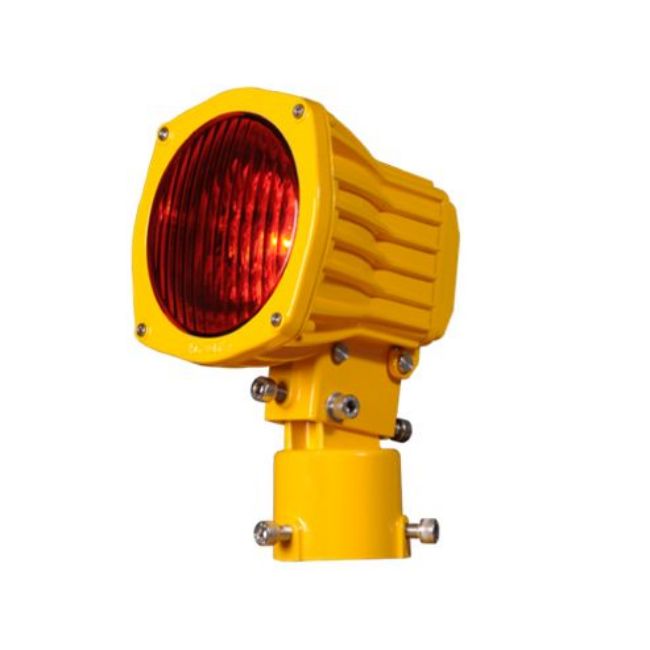

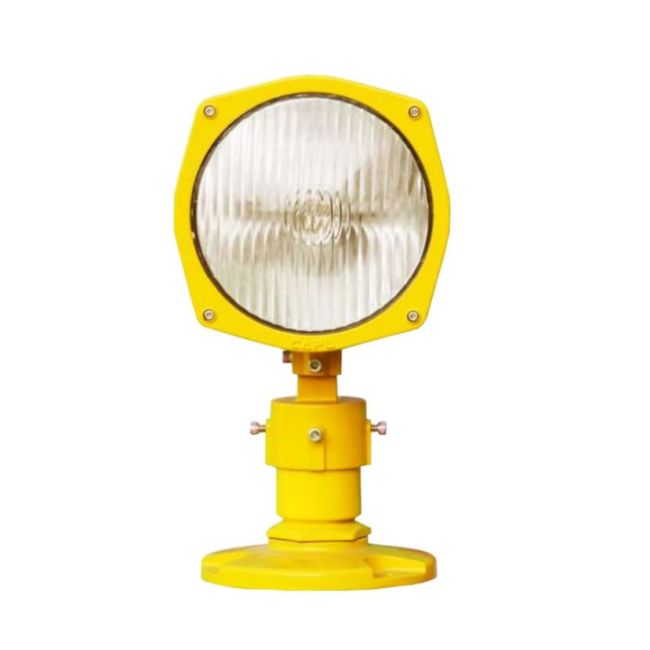

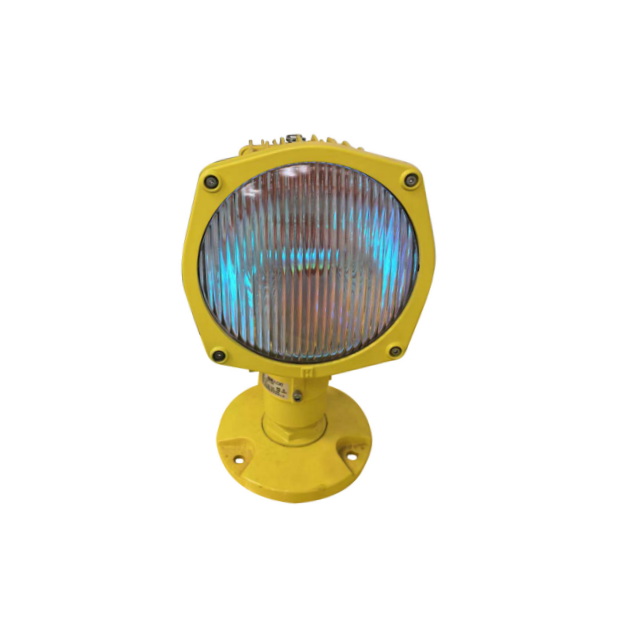

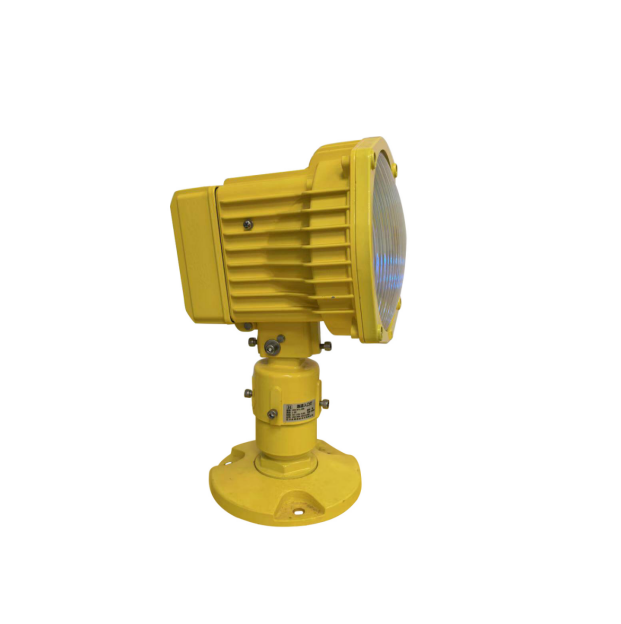

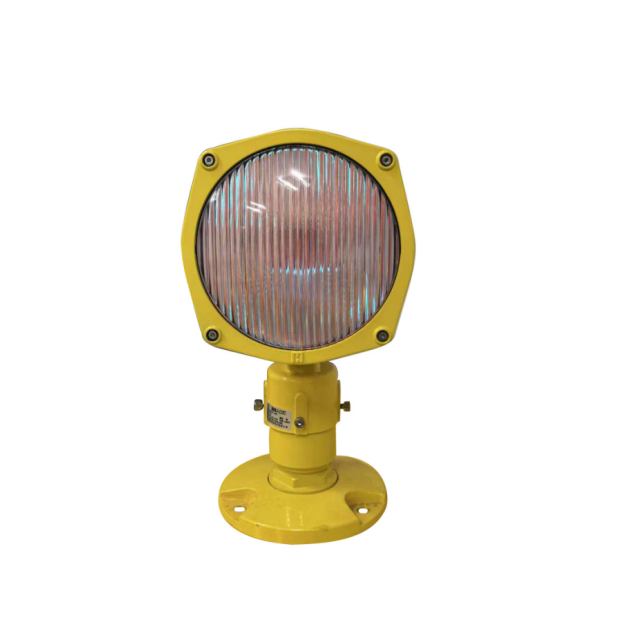

OS-SBL(H) Halogen Elevated Stop Bar Light
Short Description:
Product name:Halogen Elevated Stop Bar light
Power supply: 6.6A
Rated power: 1X 45W
Halogen Life Time:1000 Hours
Minimum Average Intensity:200cd
Color: Red
IP grade: IP65
Item: OS-SBL(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-SBL(H)- Category
- Elevated Taxiway Lighting, Taxiway Lighting Series
- Item: OS-SBL(H)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- IP grade: IP65
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: 1X45W
| Item | OS-SBL(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| IP grade | IP65 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | 1X45W |
| Lamp | Halogen Lamp |
| Lamp Life | 1000Hours |
| Photometric Property - Light color | Red |
| Main beam angle | Vertical:1°- 8°; Horizontal:±10° |
| Min intensity | 200cd |
| Packing Size | 220X220X265mm³ |
| Weight | 2.33Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Angle of Main Light Beam | Average Intensity Actual |
| Horizontal | Vertical |
| OS-SBL(H) - ICAO Figure A2-12 | 294 |
| 1 - Front cover | Front adjusting screw |
| 2 - Optical cover | Washer |
| 3 - Optical cover gasket | Hinge pin |
| 4 - Filter | Rear adjusting screw |
| 5 - Reflector | Side locking screw |
| 6 - Light body | Body base |
Typically specified for Elevated Taxiway Lighting, Taxiway Lighting Series projects.
Common use cases include elevated type, halogen elevated stop bar light, halogen elevated stopbar, halogen elevated stopbar lights, halogen elevated taxiway stop bar light, halogen lights for stop bar.
